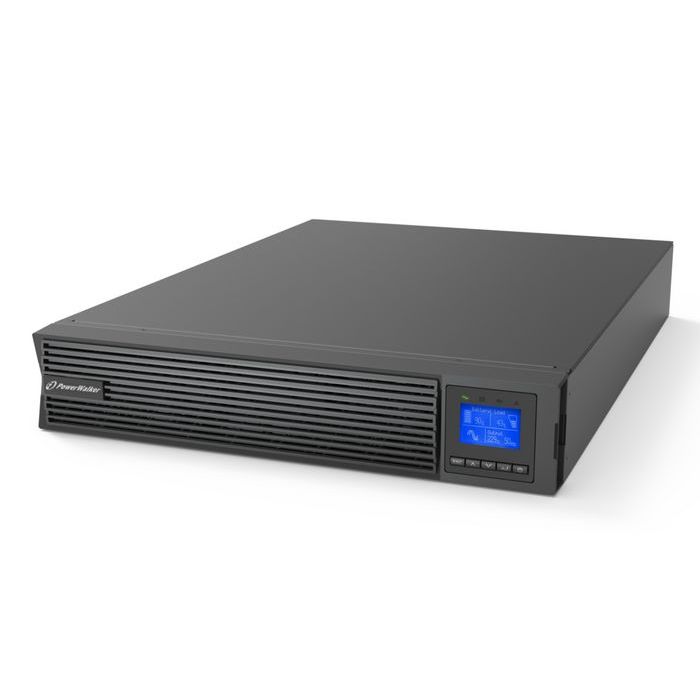

PowerWalker Online, 3000VA / 3000W, 8 x C13 & 1 x C19 Out, USB, RS-232, LCD
Op voorraad: 24 stuks
PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.
This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Stay up to date everywhere and anytime.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 3 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Charging current | 1,5 A |
| Number of batteries supported | 6 |
| Built-in fan | Yes |
| Cooling type | Active |
| Display | LCD |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 2U |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Efficiency (On-line mode) | 93 procent |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 160 V |
| Noise level | 50 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| Output power factor | 1 |
| Output voltage regulation | 1 procent |
| Power protection features | Overload |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Operating relative humidity (H-H) | 0 - 95 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Cables included | Input power cable, Output power cable, USB cable |
| Manual | Yes |
| Rack mount kit | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC-uitgang(en) |
| Emergency Power Off (EPO) connector | Yes |
| Power plug | C20 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB port | Yes |
| USB port type | USB Type-B |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10122199 |
| EAN | 4260074982909 |
