QuWireless Wi-Fi, Bluetooth, 50 Ω, IP67
Op voorraad: 1 stuks
€ 215,95
Op voorraad
SKU
AX10M

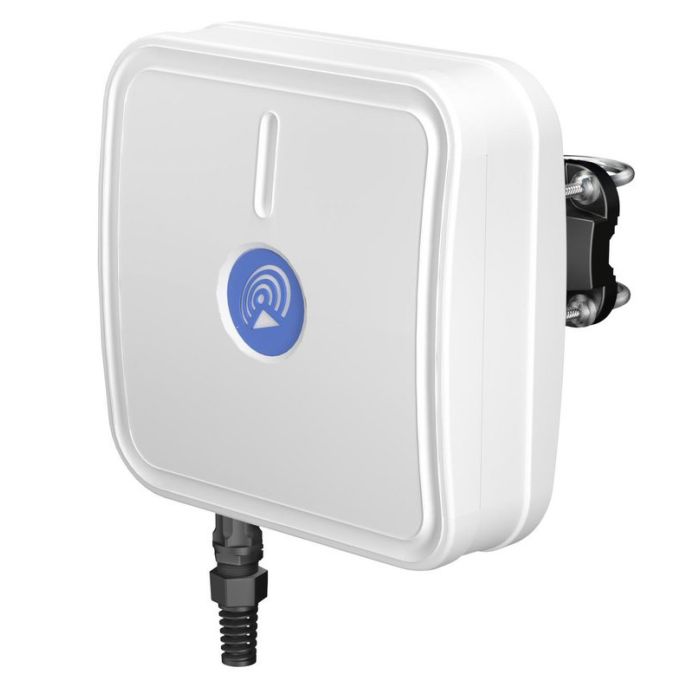

QuMAX offers the most powerful Wi-Fi dual band 2.4 & 5 GHz sector antenna of all QuWireless antennas. It is dedicated to hotspots and fixed networks base stations with big coverage. It is designed to have Teltonika RUTX10 router installed inside IP67 enclosure.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
QuMAX offers the most powerful Wi-Fi dual band 2.4 & 5 GHz sector antenna of all QuWireless antennas. It is dedicated to hotspots and fixed networks base stations with big coverage. It is designed to have Teltonika RUTX10 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also Bluetooth sector antenna.
leaflet ( Engels ) Product Brochure
Specifications
| Antenna connector type | PoE/LAN |
|---|---|
| Antenna type | Directional antenna |
| Compatible products | RUTX10 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| International Protection (IP) code | IP67 |
| Mounting | Wall/Pole |
| Polarization | Dual polarization |
| Product colour | White |
| Purpose | Indoor & outdoor |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Operating temperature (T-T) | -40 - 75 °C |
| Manual | Yes |
| Mounting kit | Yes |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Antenna gain (2.4 GHz) | 12 dBi |
| Antenna gain (5 GHz) | 14 dBi |
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4-2.5/5.1-5.9 GHz |
| Horizontal beam width (2.4 GHz) | 90 ° |
| Horizontal beam width (5 GHz) | 90 ° |
| Impedance | 50 Ohm |
| Vertical beam width (2.4 GHz) | 30 ° |
| Vertical beam width (5 GHz) | 16 ° |
| Warranty | 2 years |
| Merk | QuWireless |
|---|---|
| Part number (MPN) | AX10M |
| EAN | 5907772035122 |
