Synology PCIe 3.0 x8, PCIe NVMe, LAN, 10 Gbps, 200.05 x 71.75 x 17.7 mm
Leverbaar op bestelling
**10GbE bandwidth and M.2 SSD cache, all at once**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**10GbE bandwidth and M.2 SSD cache, all at once**

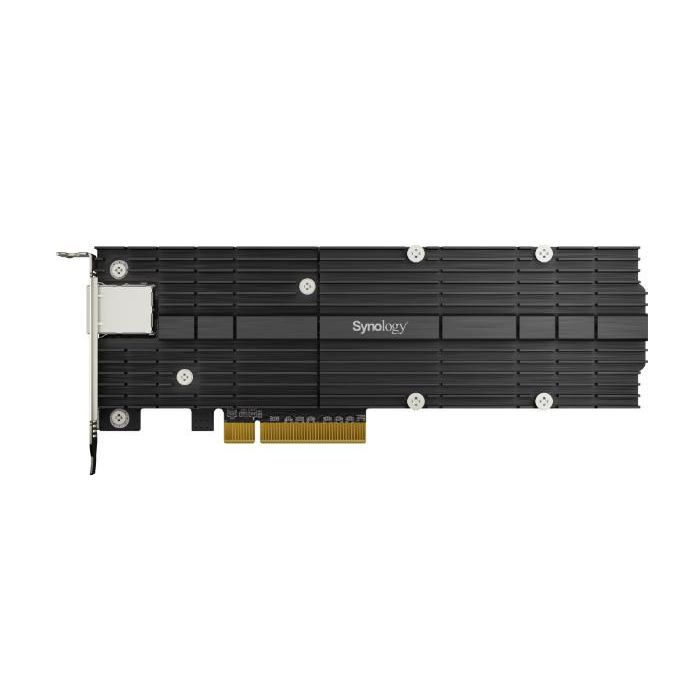

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.
**A perfect match with Synology SNV3000 series NVMe SSD**
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.
leaflet ( Engels ) Product Brochure
other digital assets ( Engels ) Hardware Installation Guide
Specifications
| Cooling type | Passive |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Purpose | NAS / Storage server |
| Data transfer rate (max) | 10 Gbit/s |
| Full duplex | Yes |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Compatibility | 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII, 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+, 19 series:DS2419+, DS2419+II, DS1819+, 20 series:RS820RP+, RS820+, 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, 22 series:DS3622xs+, DS2422+, SA series:SA3600, SA3400 |
| Quantity | 1 |
| Quick installation guide | Yes |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Host interface | PCIe |
| NVMe | Yes |
| Output interface | PCIe |
| Warranty | 2 years |
| Merk | Synology |
|---|---|
| Part number (MPN) | E10M20-T1 |
| EAN | 4711174723485 |
