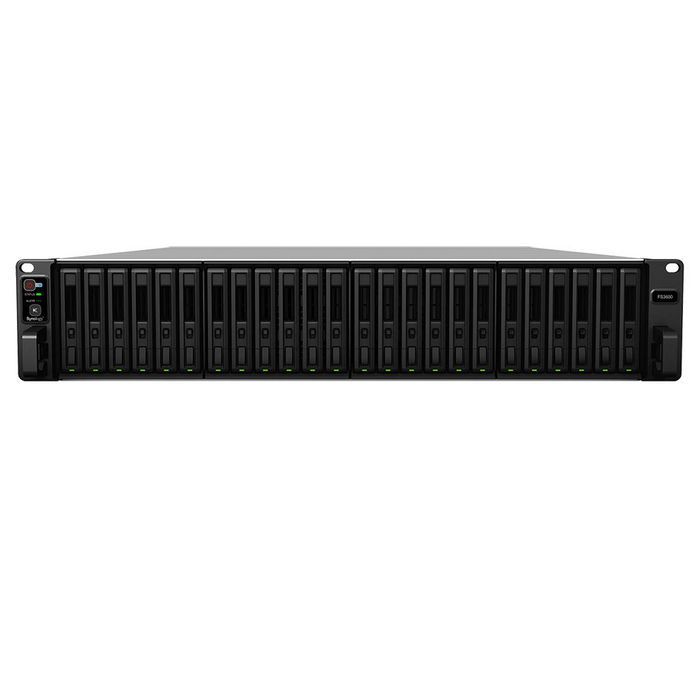

Synology 2U, Intel Xeon D-1567, 16 GB DDR4 ECC RDIMM (128 GB Max), 24 Drive Bays 2.5" HDD/SSD
Leverbaar op bestelling
Fast and scalable all-flash NAS
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Fast and scalable all-flash NAS
FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS1 to satisfy enterprise demand for high-speed infrastructure.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Real-time collaboration on your private cloud
Synology Office is a collaboration package combining the convenience and usability of the public cloud with private cloud privacy and security. It enables seamless collaboration on documents and spreadsheets in a protected environment.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
leaflet ( Engels ) Product Brochure
Specifications
| RoHS compliance | Yes |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 4 ventilator(en) |
| Product colour | Black |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory form factor | DIMM |
| Memory slots | 4 |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 10000 |
| iSCSI support | Yes |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | RoHS |
| Processor ARK ID | 93356 |
| Backup features | Cloud, USB drive |
| Backup function | Yes |
| Device class | Small & Medium Business |
| Noise level | 57 dB |
| Type | NAS |
| Ethernet LAN (RJ-45) ports | 6 |
| Fiber ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Redundant power supply (RPS) support | Yes |
| Conflict-Free processor | Yes |
| CPU configuration (max) | 1 |
| L3 cache | 18 MB |
| Maximum internal memory supported by processor | 128 GB |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 2.0, 3.0 |
| Processor boost frequency | 2,7 GHz |
| Processor cache | 18 MB |
| Processor cache type | L3 |
| Processor code | SR2M3 |
| Processor codename | Broadwell |
| Processor cores | 12 |
| Processor family | Intel® Xeon® D |
| Processor frequency | 2,1 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | D-1567 |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Processor threads | 24 |
| Scalability | 1S |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 65 W |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 24 |
| RAID support | Yes |
| Storage drive capacity | 0 GB |
| Storage drives installed | No |
| Supported file systems | BTRFS, exFAT, ext3, ext4, Fat, HFS+, NTFS |
| Supported storage drive interfaces | Serial ATA III, Serial Attached SCSI (SAS) |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 0 TB |
| Sustainability certificates | RoHS |
| Warranty | 5 years |
| Merk | Synology |
|---|---|
| Part number (MPN) | FS3600 |
| EAN | 4711174723614 |
