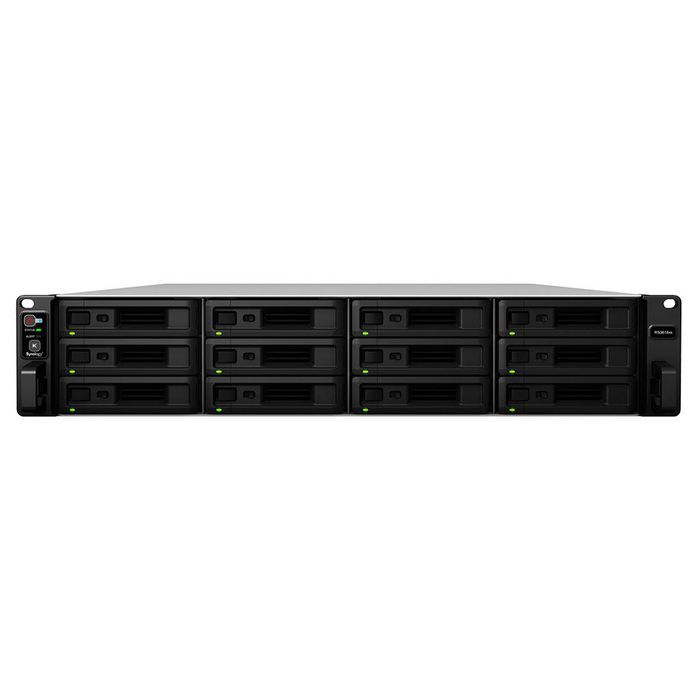

Synology RackStation RS3618xs, Intel Xeon D-1521 2.4 GHz, 8 GB DDR4, 12x 2.5/3.5" SATA HDD/SSD, 4x RJ-45 1GbE LAN, 2x USB 3.0, 2x Gen3 x8, 500 W PSU, 88x430.5x692 mm
Leverbaar op bestelling
**High-speed scalable storage server**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**High-speed scalable storage server**
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
**Ready for 10GbE and beyond**
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
**Ultimate Backup Solution**
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
**Active Backup for Server**
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
**Hyper Backup**
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
**Desktop Backup**
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
**Active Backup for Office 365/ G Suite**
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
**Fully certified storage virtualization solutions**
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
**Next-generation file system for better data protection**
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
leaflet ( Frans )
manual pdf ( Frans )
Specifications
| RoHS compliance | Yes |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Fan diameter | 8 cm |
| LED indicators | HDD, Power |
| Number of fans | 4 ventilator(en) |
| Product colour | Black |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory clock speed | 2133 MHz |
| Memory slots | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| iSCSI support | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Operating altitude | 0 - 5000 m |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
| Compliance certificates | RoHS |
| Cables included | AC |
| Quick installation guide | Yes |
| Access Control List (ACL) | Yes |
| Backup features | Cloud, iSCSI LUN |
| Backup function | Yes |
| Browser supported | Chrome, Firefox, Internet Explorer 10, Safari |
| Device class | Small & Medium Business |
| Hot spare | Yes |
| Multilingual support | Yes |
| Noise level | 50,2 dB |
| Number of users | 16000 gebruiker(s) |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Share folder | CIFS/AFP/FTP |
| System log | Yes |
| Type | NAS |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber ports quantity | 0 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power consumption (HDD standby) | 55,05 W |
| Power consumption (typical) | 142,76 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Conflict-Free processor | Yes |
| CPU configuration (max) | 1 |
| ECC supported by processor | Yes |
| Maximum internal memory supported by processor | 128 GB |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 2.0, 3.0 |
| Processor ARK ID | 91202 |
| Processor boost frequency | 2,7 GHz |
| Processor cache | 6 MB |
| Processor code | SR2DF |
| Processor codename | Broadwell |
| Processor cores | 4 |
| Processor family | Intel® Xeon® D |
| Processor frequency | 2,4 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | D-1521 |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Processor threads | 8 |
| Scalability | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 45 W |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Operating system installed | DiskStation Manager |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Windows operating systems supported | Windows 10, Windows 7 |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Maximum supported storage capacity | 144 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 12 |
| RAID levels | 0, 1, 10, 5, 6, F1, JBOD |
| RAID support | Yes |
| Storage drive capacity | 0 GB |
| Storage drive sizes supported | 2.5, 3.5 |
| Storage drives installed | No |
| Supported file systems | BTRFS, ext3, ext4, Fat, HFS+, NTFS |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Supported storage drive types | HDD & SSD |
| Total installed storage capacity | 0 TB |
| Sustainability certificates | RoHS |
| Warranty | 3 years |
| Merk | Synology |
|---|---|
| Part number (MPN) | RS3618XS |
| EAN | 4711174723058 |
