Ubiquiti 5.15 ‑ 5.85 GHz, 13 dBi, Dual-Linear, 90°/90°, 920 g
Op voorraad: 35 stuks

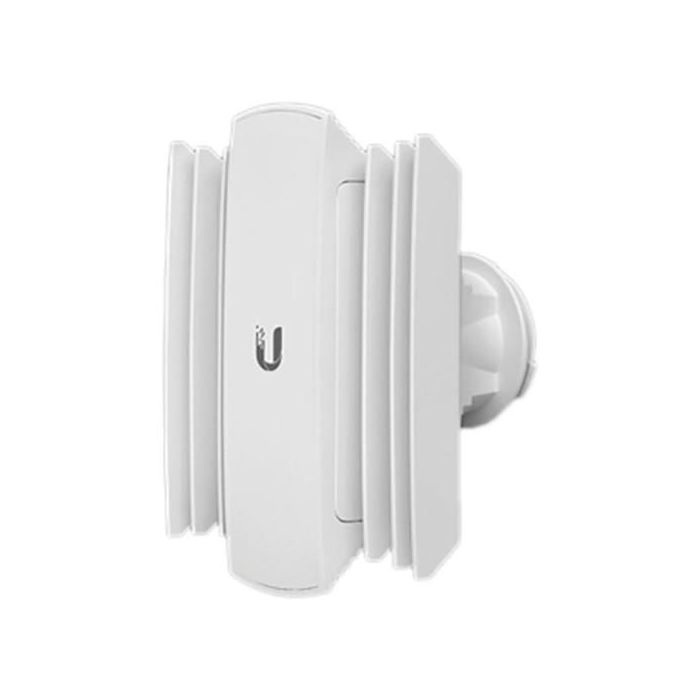

**5 GHz Beamwidth Horn Antenna**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**5 GHz Beamwidth Horn Antenna**
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
**Modular Design**
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
**Asymmetrical horn antennas**
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
other digital assets ( Engels ) Quick Start Guide
leaflet ( Engels ) Product Brochure
Specifications
| Antenna type | Horn antenna |
|---|---|
| Isolation | 17 dB |
| Polarization | Dual polarization |
| Product colour | White |
| Survival wind speed | 200 km/h |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Wind load | 46 |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Antenna gain level (max) | 13 dBi |
| Frequency band | 5.15 - 5.85 GHz |
| Horizontal beam width | 90 ° |
| Vertical beam width | 90 ° |
| Warranty | 2 years |
| Merk | Ubiquiti |
|---|---|
| Part number (MPN) | HORN-5-90 |
| EAN | 817882020084 |
