Ubiquiti airMAX NanoStation M5 loco
Op voorraad: 47 stuks

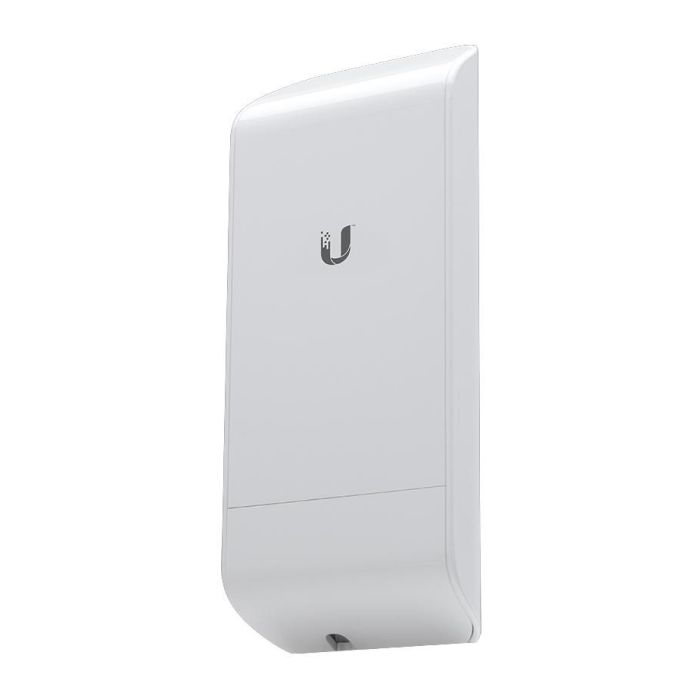

**NanoStation Loco M**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**NanoStation Loco M**
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
**airMAX TDMA Protocol**
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
**Powerful Software Features**
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
**World Class Antenna Design**
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
User Manual ( Engels )
User Manual ( Engels )
Datasheet ( Engels )
Specifications
| Antenna design | MIMO |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Antenna type | MIMO |
| Certification | FCC, IC, CE, RoHS |
| Maximum data transfer rate | 150 Mbit/s |
| Supported data transfer rates | 10/100/150 Mbit/s |
| Housing material | Polycarbonate (PC) |
| Product colour | White |
| Data link protocols | TCP/IP, MIMO TDMA |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Yes |
| Networking standards | IEEE802.3, IEEE802.3u |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -30 - 75 °C |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (typical) | 5,5 W |
| Power over Ethernet (PoE) | Yes |
| Power requirements | 24V, 0.5A |
| Dimensions (WxDxH) | 80 x 31 x 163 mm |
| Frequency band | 5.170 - 5.875 GHz |
| Warranty | 2 years |
| Merk | Ubiquiti |
|---|---|
| Part number (MPN) | LOCOM5 |
| EAN | 810354022340 |
