Ventev 2.4 - 5.85 Ghz, 6 dBi, 700 Mhz, 137x25x74mm, 300g, White
Op voorraad: 14 stuks
€ 158,95
Op voorraad
SKU
M6040060O2D1802R

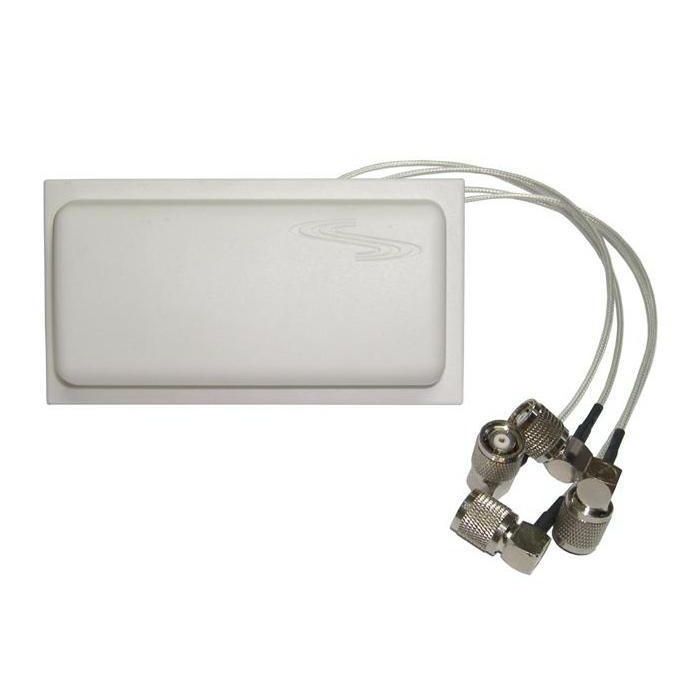

**2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna with Four RA RPTNC Plugs and 18” Pigtails**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna with Four RA RPTNC Plugs and 18” Pigtails**
Ventev’s TerraWave 2.4/5 GHz 4/6 dBi Mini Quad Ceiling Wi-Fi Antenna is designed to work with 4-Lead MIMO radios functioning in the 802.11n wireless protocol band. It features four dual band antennas in a single unit. This solution allows engineers to simplifyWi-Fi deployments by using only one antenna for dual band access points.
leaflet ( Engels ) Product Brochure
Specifications
| Compliance certificates | RoHS |
|---|---|
| Antenna connector type | RP-TNC |
| Antenna type | Omni-directional antenna |
| Cable length | 0,45 m |
| Connector gender | Male |
| Mounting | Ceiling |
| Polarization | Vertical polarization |
| Product colour | White |
| Purpose | Indoor |
| RoHS compliance | Yes |
| Voltage Standing Wave Ratio (VSWR) | 2.5 |
| Operating temperature (T-T) | -40 - 70 °C |
| Antenna gain level (max) | 6 dBi |
| Bandwidth note | 700 MHz |
| Frequency band | 2.4 - 5.85 GHz |
| Impedance | 50 Ohm |
| Networking standards | IEEE 802.11n |
| Sustainability certificates | RoHS |
| Warranty | 2 years |
| Merk | Ventev |
|---|---|
| Part number (MPN) | M6040060O2D1802R |
| EAN | 888063020216 |
