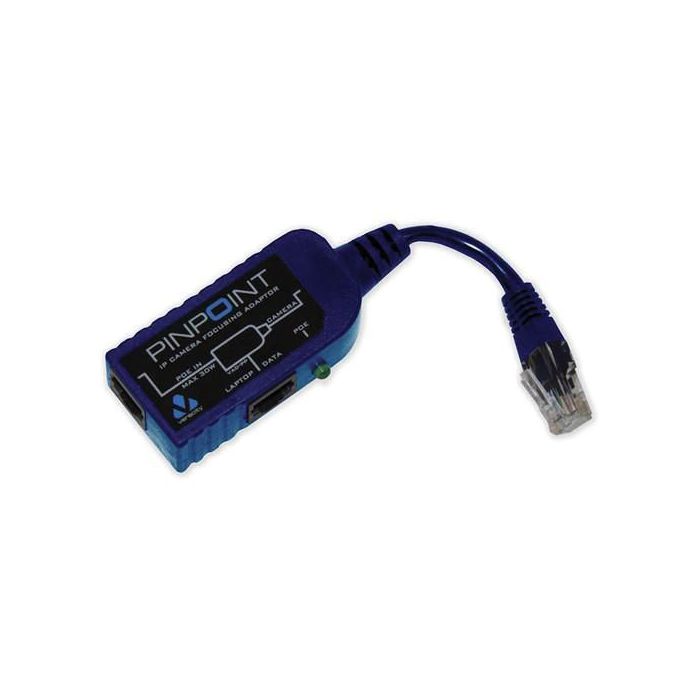

Veracity PINPOINT Setup/focus adaptor for POE-powered IP cameras
Op voorraad: 11 stuks
The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power. Compared to the trial-and-error process where an installer works with a partner in the control room communicating via phone or radio, the adaptor can be installed by a single installer in less time enabling precise camera configuration for the best image possible.
Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE.
- IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
- Installation without removing camera from the network and losing PoE power
- Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
- IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
- Compact adaptor (65 x 32 x 20 mm)
- LED indicator for PoE
Datasheet ( Engels )
Datasheet ( Engels )
Specifications
| Certification | CE, FCC |
|---|---|
| Internal | No |
| LED indicators | Yes |
| RoHS compliance | Yes |
| Cabling technology | 10/100BaseT(X) |
| Ethernet LAN | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Operating temperature (T-T) | -10 - 70 °C |
| Connector(s) | 2 x PoE RJ-45, 1 x RJ-45 |
| Link/Act LED | Yes |
| Power LED | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 3 |
| Host interface | RJ-45 |
| Interface | Ethernet |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Warranty | 2 years |
| Merk | Veracity |
|---|---|
| Part number (MPN) | VAD-PP |
| EAN | 892314002166 |
