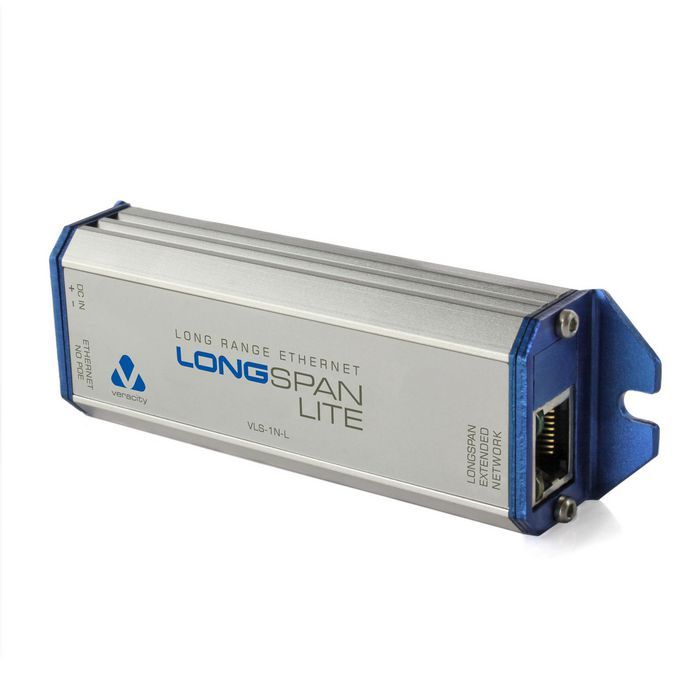

Veracity Longspan Lite extended eth.- only device (single unit)
Op voorraad: 26 stuks
LONGSPAN Lite self-configures for optimum performance across 4-pair, 2-pair or 1-pair data-only links. The Lite version can be used in combination with another Lite device or with LONGSPAN POE devices at the camera end which are locally powered for maximum POE output.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
LONGSPAN Lite self-configures for optimum performance across 4-pair, 2-pair or 1-pair data-only links. The Lite version can be used in combination with another Lite device or with LONGSPAN POE devices at the camera end which are locally powered for maximum POE output.
A pair of LONGSPAN Lite network adaptors deliver full bandwidth Ethernet over greatly extended distances of regular network cable. No POE is transmitted and both devices are powered by 12V DC at each end.
leaflet ( Engels ) Product Brochure
other digital assets ( Engels ) Quick Start Guide
Datasheet ( Engels )
Datasheet ( Engels )
Specifications
| Product colour | Silver |
|---|---|
| Quantity per pack | 1 stuk(s) |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 0 - 85 °C |
| Package type | Box |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3, Cat5e, Cat6 |
| Data transfer rate | 200 Mbit/s |
| Duplex system | Full |
| Ethernet LAN data rates | 10, 100 |
| Maximum transfer distance | 1050 m |
| Plug and Play | Yes |
| Type | Network transmitter & receiver |
| Ethernet LAN (RJ-45) ports | 2 |
| AC input voltage | 20 - 28 V |
| External power adapter | Yes |
| Power consumption (typical) | 1 W |
| Warranty | 5 years |
| Merk | Veracity |
|---|---|
| Part number (MPN) | VLS-1N-L |
| EAN | 892314002234 |
