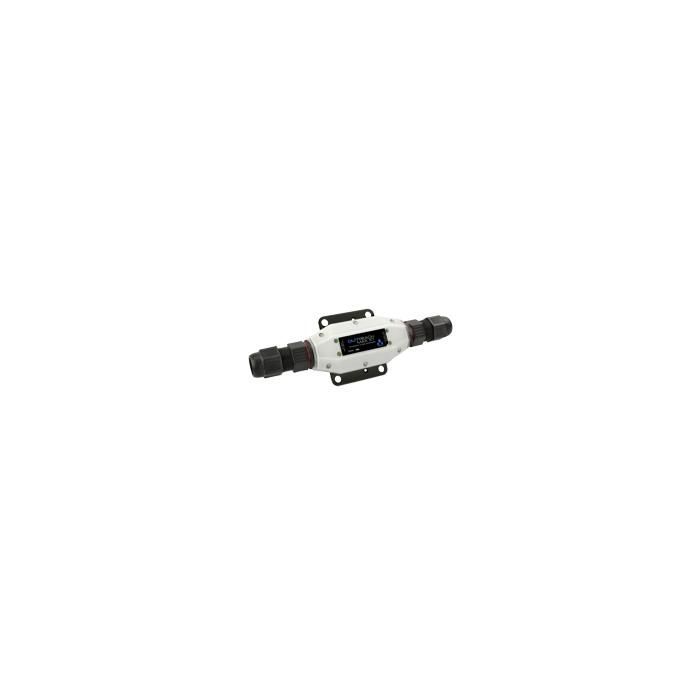

Veracity Outdoor Ethernet and POE Extender
Op voorraad: 17 stuks
OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts, including IP66-rated connector covers and 2/4 bolt wall-mounting bracket
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts, including IP66-rated connector covers and 2/4 bolt wall-mounting bracket
OUTREACH Max XT lets you locate your external IP camera or wireless transmitter right where you want it, without being restricted by the 328 feet limit for Ethernet cables.
Based on Veracity's established OUTREACH Max extender, compatibility with regular 802.3af POE and 802.3at POE plus is assured, with no configuration or setup required.
Its rugged and streamlined enclosure features IP66-rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables.
Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.
And inter-building network links or extension to non-POE equipment is also supported, with Veracity's OUTREACH Lite XT model.
A 24V POE model for wireless applications is available to special order mailto:support@veracityuk.com please enquire
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| LED indicators | LAN, Link, PoE |
|---|---|
| Maximum operating distance | 100 m |
| Product colour | Black, Grey |
| Wall mountable | Yes |
| Cable standard | Cat6 |
| Cable types supported | Cat6 |
| Compliance industry standards | CE, FCC, RoHS |
| Duplex system | Full, Half |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100 |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 0 - 85 procent |
| Operating temperature (T-T) | -40 - 140 °F |
| Number of products included | 1 stuk(s) |
| Ethernet LAN (RJ-45) ports | 2 |
| Output current | 0,7 A |
| Power over Ethernet (PoE) power per port | 1,3 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Total Power over Ethernet (PoE) budget | 70 W |
| Dimensions (WxDxH) | 50 x 210 x 31 mm |
| Warranty | 5 years |
| Merk | Veracity |
|---|---|
| Part number (MPN) | VOR-ORM-XT |
| EAN | 892314002302 |
